Product Description

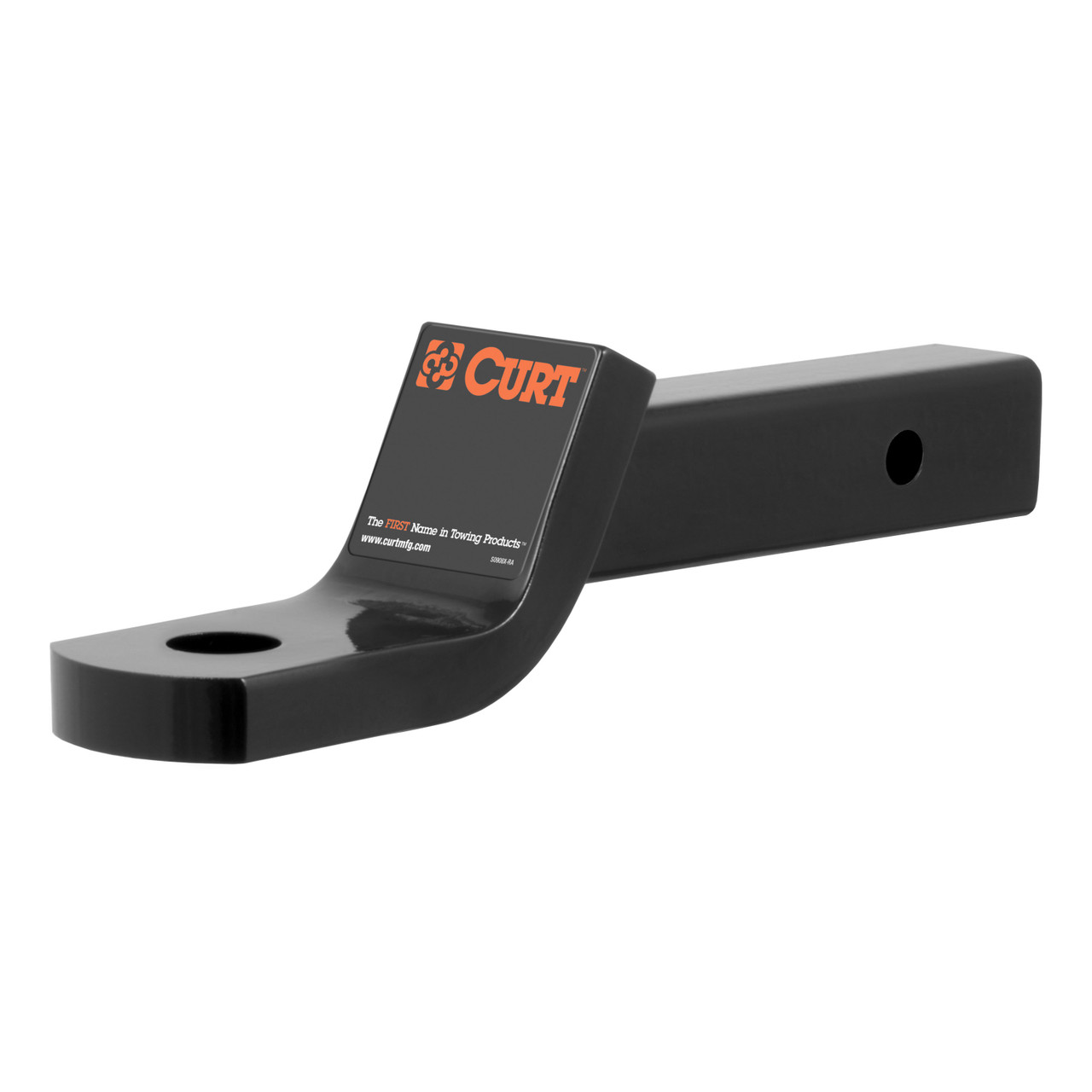

CURT 45312 Class 4 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 12,000 lbs, 1-1/4-Inch Hole, 2-In Drop, 1-Inch Rise
Installation Instructions
View InstructionsNotes
Trailer ball and hitch pin sold separately
Product Video
Features

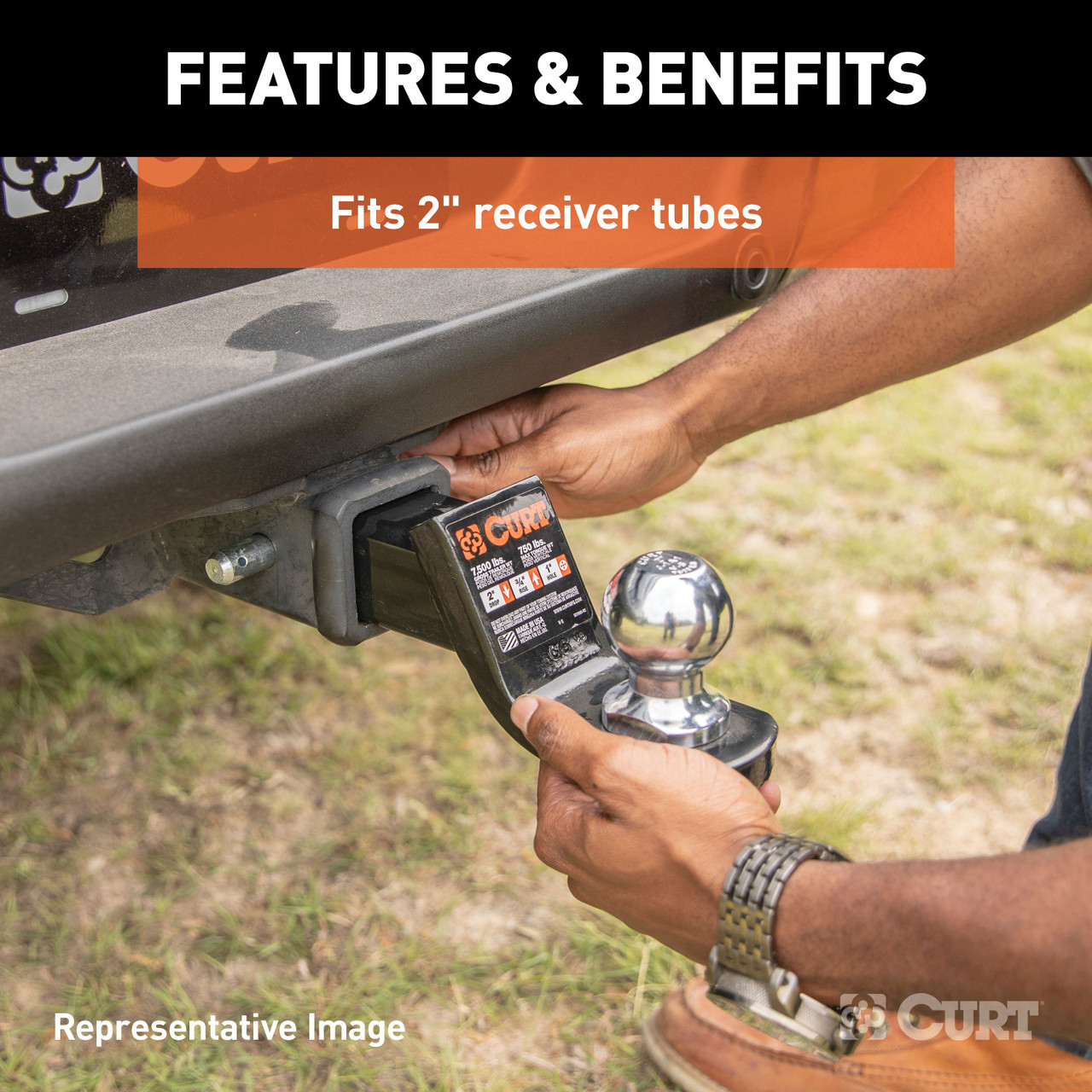

- Fits trailer hitches with a 2" x 2" receiver tube opening
- Equipped with a 1-1/4" hole to accept a trailer ball shank

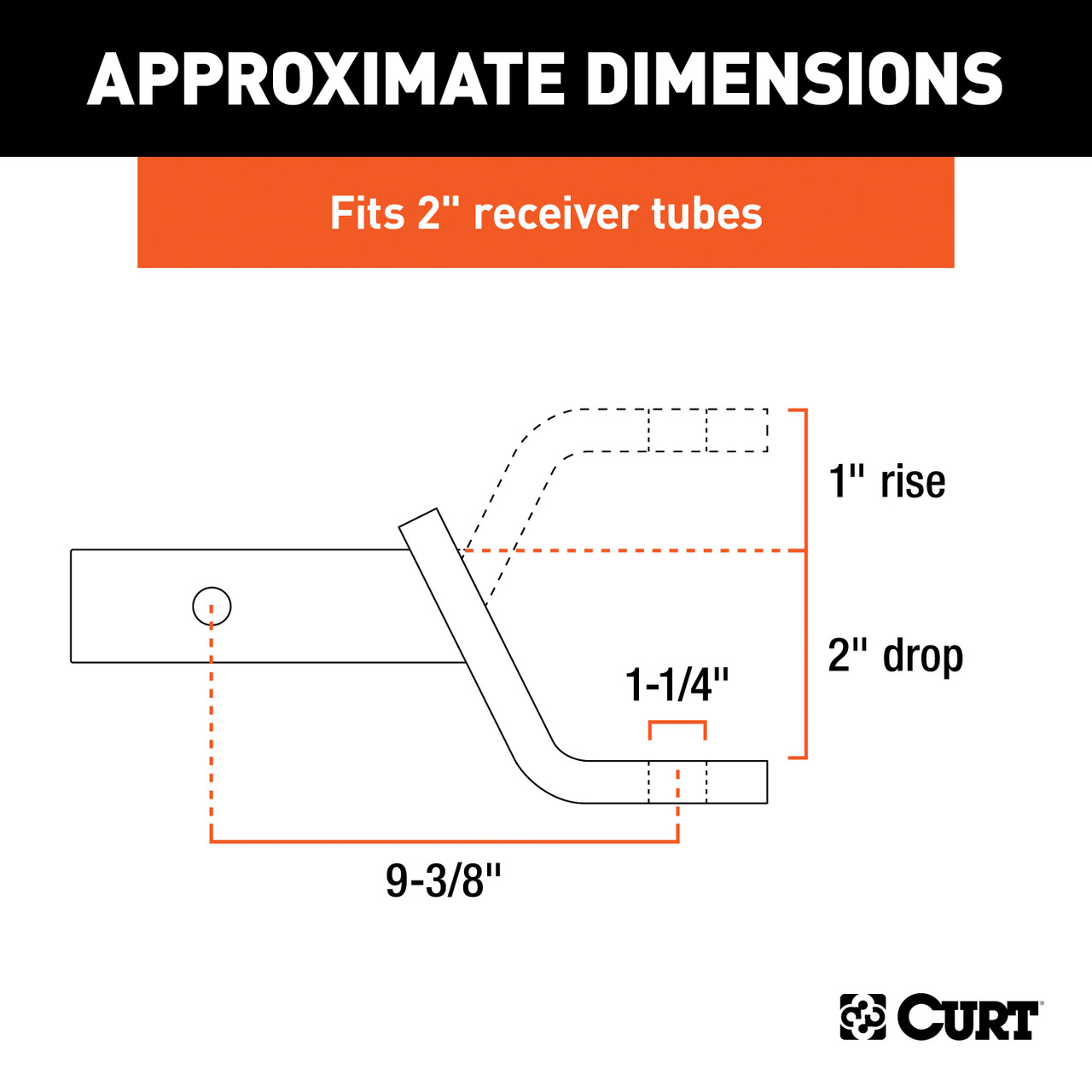

- 2" drop or 1" rise for precise trailer leveling
- Shank constructed from solid steel for optimum strength
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Made in USA
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Color: Black
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 1,200 LB
WC Tongue Weight (Pounds): 1,200 LB
Gross Trailer Weight (Pounds): 12,000 LB
Installation Time Exact (Minutes): 0
Description
When you demand more from your towing equipment, CURT class 4 ball mounts answer the call. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a few different drop height options and the ability to flip for optional rise, CURT class 4 ball mounts are built to work as hard as you do, from sunup to sundown. This class 4 ball mount has a gross trailer weight capacity of 12,000 lbs. and tongue weight rating of 1,200 lbs. It has a standard drop of 2" or can be flipped to provide 1" of rise. It also features a solid shank for maximum strength. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.
